Pairing locks/sensors with communication hub




AH30/AH40 version of the communication hub can be paired with a combination of up to 8 locks/sensors. AH15/AH20 can manage one lock/sensor.

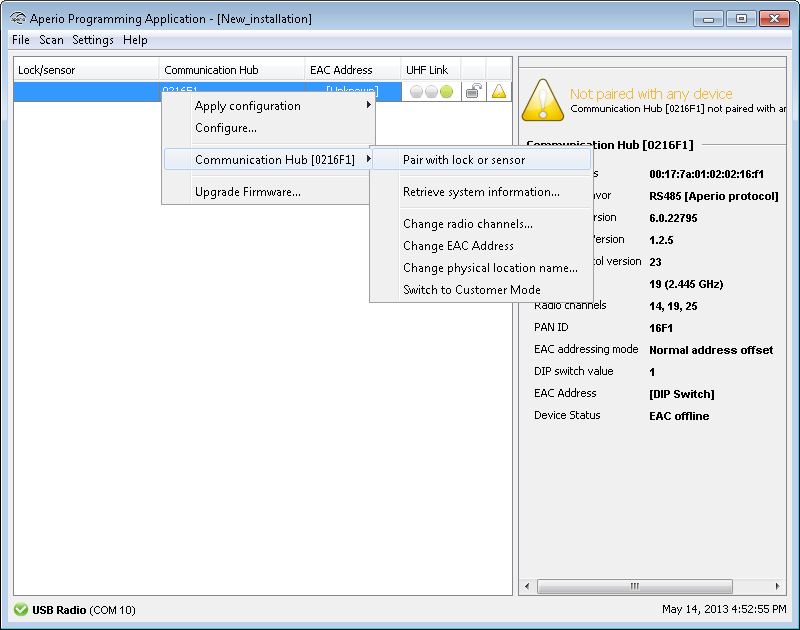

  1. Right-click and select Communication hub > Pair with lock or sensor.
    ../../images/progappbilder/image22.png

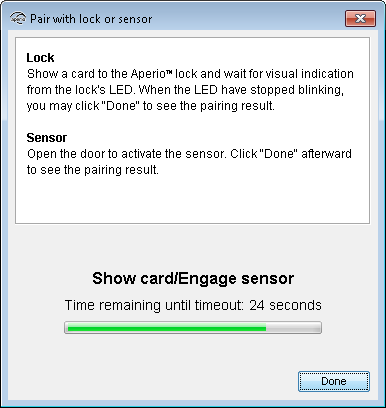

  2. The pairing process starts. Hold the credential at the lock, or engage the magnet for the sensor to pair the hardware with the communication hub.
    ../../images/progappbilder/image23.png
  3. When the lock has stopped blinking you can click Done to see the pairing result.
    ../../images/progappbilder/image24.png

    Result: The result is displayed.
