Select MIFARE Classic Sector in the RFID Card Type drop down list.
- Start Address in Sector: Parts of blocks within a sector can be used for credential data: 0 to 47 for 1K MIFARE Classic credentials. For 4K MIFARE Classic credential 0-47 (Start sector 0 to 31) and 0 – 239 (Start sector above 31)
- Length to read in Sector: Length of the credential data: 1 - 48 (Start sector above 31 cannot be used in the current release of the Programming Application).
- MIFARE Authentication Key: A 6 bytes long hexadecimal key is required to read the credential data: For example: 112233445566
- Read Key: Select the read key that the credential is configured to use for sector
reading. The lock/sensor will give access only for this key. Note: If key B is selected as sector data read key, make sure that the access bits on the credential prevent reading of key B. If key B is readable on the credential, key B cannot be used to read the credential data.

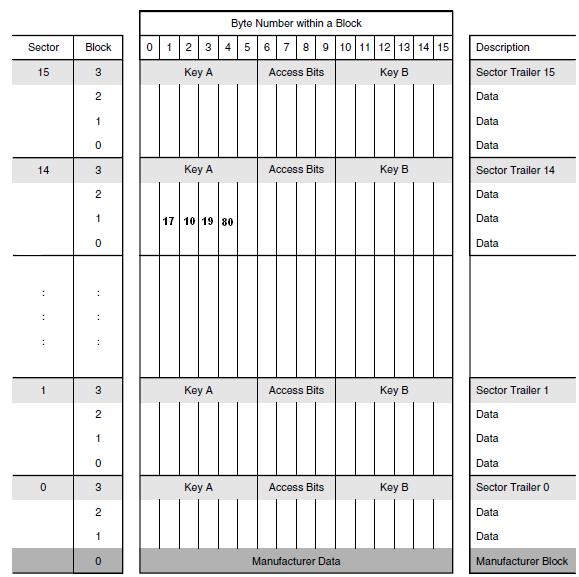

To read the user data shown in the figure below, 17 10 19 80, and use the Authentication
Key 001122334455 together with MIFARE Key A.

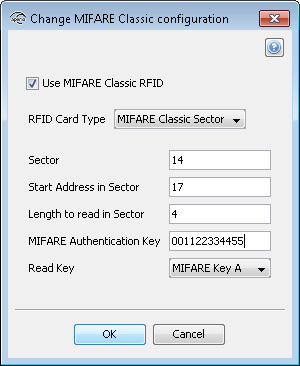

The configuration should look like this:
