Select MIFARE Plus Sector in the RFID Card Type drop down list.
- Start Address in Sector: Parts of blocks within a sector can be used for credential data: 0 to 47 for 1K MIFARE Classic credentials. For 4K MIFARE Classic credentials 0-47 (Start sector 0 to 31) and 0 – 239 (Start sector above 31)
- Length to read in Sector: Length of the credential data: 1 - 48 (Start sector above 31 cannot be used in the current release of the Programming Application). .
- MIFARE Authentication Key: A 16 bytes long hexadecimal key is required to read the credential data: For example: 00112233445566778899AABBCCDDEEFF
- Read Key: Select the read key that the credential is configured to use for sector
reading. The lock will give access only for this key. Note: If key B is selected as sector data read key, make sure that the access bits on the credential prevent reading of key B. If key B is readable on the credential, key B cannot be used to read the credential data.
Since MIFARE Plus has the same memory organization as MIFARE Classic, we can use the same configuration. We will also use Key A but here the length of this key should be 16 bytes, in this particular case: 00112233445566778899AABBCCDDEEFF.

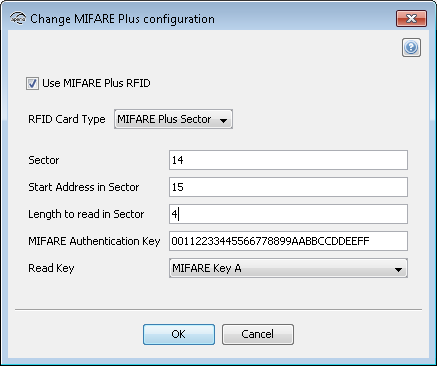

The configuration should look like this:
