Change EAC address



../../images/progappbilder/image99.png

It is recommended to use the DIP Switch for setting the EAC address of communication hubs.

However, if needed the Change EAC address function allows you to digitally assign an EAC address in the range of 1-63 (1-15 for communication hubs with several locks/sensors paired and 1-63 for communication hubs with one lock/sensor paired).

Note: If the Programming Application is used to set RS 485 addresses, it will override the address set by the DIP switch on the communication hub.

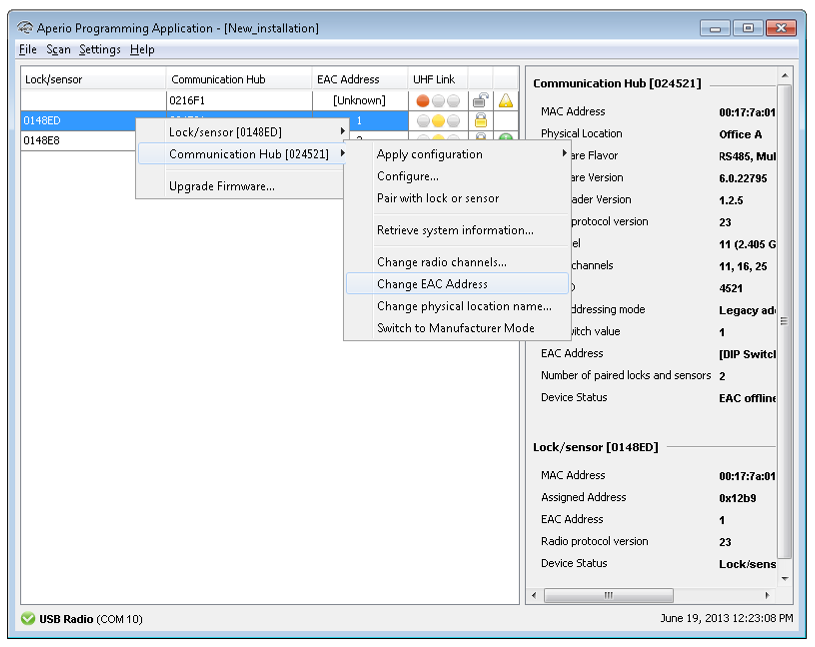

  1. Right click and select Communication hub > Change EAC Address.
    ../../images/progappbilder/image100.png
  2. Select the address and click OK.
