The communication hub has a single LED. It supports an optical scheme with red, green and yellow. The indication scheme is described by the two figures below:

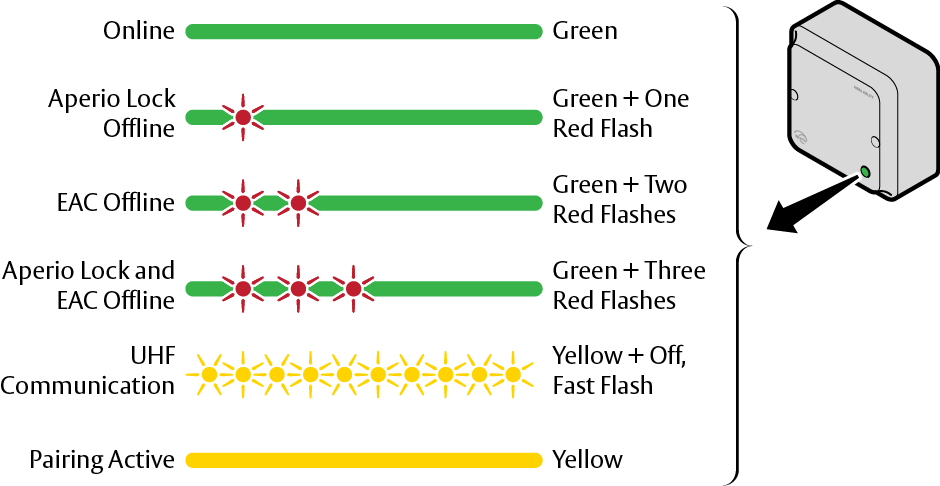

Communication hub normal operation LED indication
Some special LED indication schemes are used during lock maintenance actions:
Communication hub maintenance LED indication
