When using E-cylinder locks, the AH15 must be placed either in the roof, on the right or left wall or on the opposite wall and within a 5 meters (16 feet) range from the lock.
It is important that the communication hub is mounted with the mounting holes horizontally aligned (in the ceiling, parallel to the direction of the lock) and as close to the lock as possible.
The following pages shows typical installations based on field experience that will give a good result for radio link quality. The colors indicate which hubs and Aperio door locks that belong together.
The AH15 communication hub can be mounted according to the following figure.
AH15 Communication hub installed on a wall, with mounting holes according to marks. |
|
AH15 Communication hub installed in the ceiling (seen from above) with mounting hole alignment. |
|
Door with Aperio e-cylinder lock |

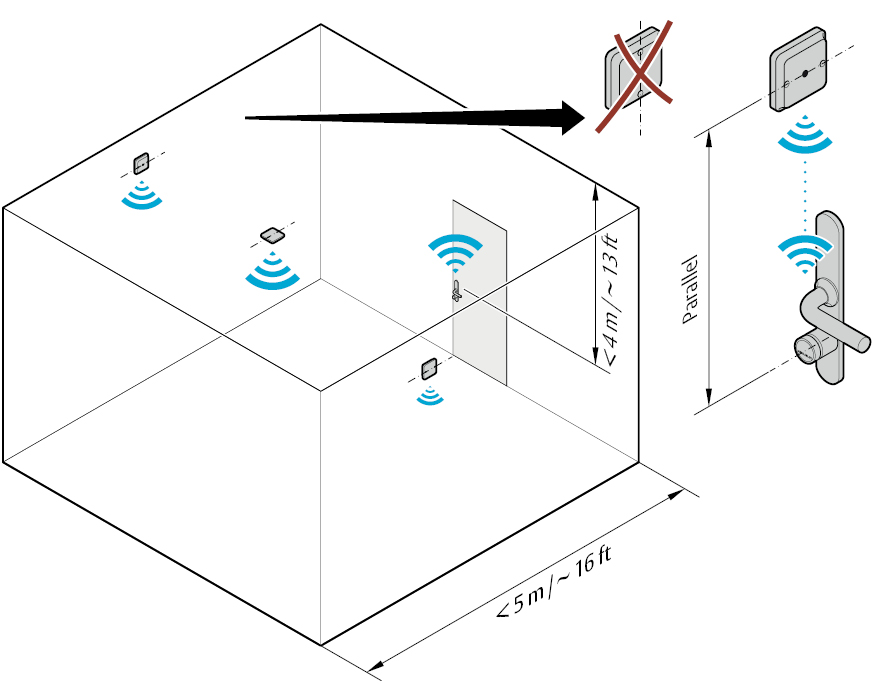

General placement options for AH15 with E-cylinder locks
