Placement options for AH15 when using other locks

When using non-cylinder locks, for example Escutcheon locks, it is recommended that the AH15 is mounted on any of the walls, and within a 5 meters (16 feet) range from the lock in the zone shown in the figure. Placement in the roof is not recommended.

It is important that the communication hub is mounted with the mounting holes vertically aligned and as close to the lock as possible.

The following pages shows typical installations based on field experience that will give a good result for radio link quality. The colors indicate which hubs and Aperio door locks that belong together.

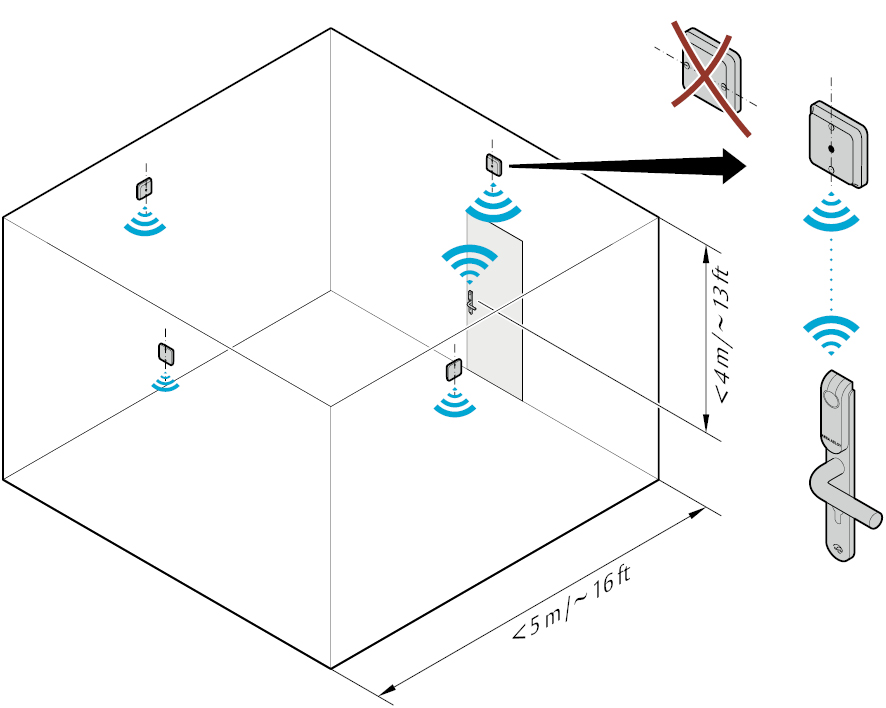

The AH15 communication hub can be mounted according to the following figure.

	AH15 Communication hub installed on a wall, with mounting holes according to marks.
	Door with Aperio lock

Note: Communication hubs should always be installed on the wall when using non e-cylinder locks. Always align the mounting holes vertically when fastening.

Placement options for AH15 with other locks
