The AH20/30/40 communication hub is designed so that it can establish a reliable radio link regardless of the mounting position (horizontal or vertical) of the communication hub and the type of lock being used.
It is recommended that the distance between the lock and the communication hub is limited to 15-25 meters, depending on the environment. However, under good conditions (free air between the units and limited radio interference from other transmitters) the distance can be extended.

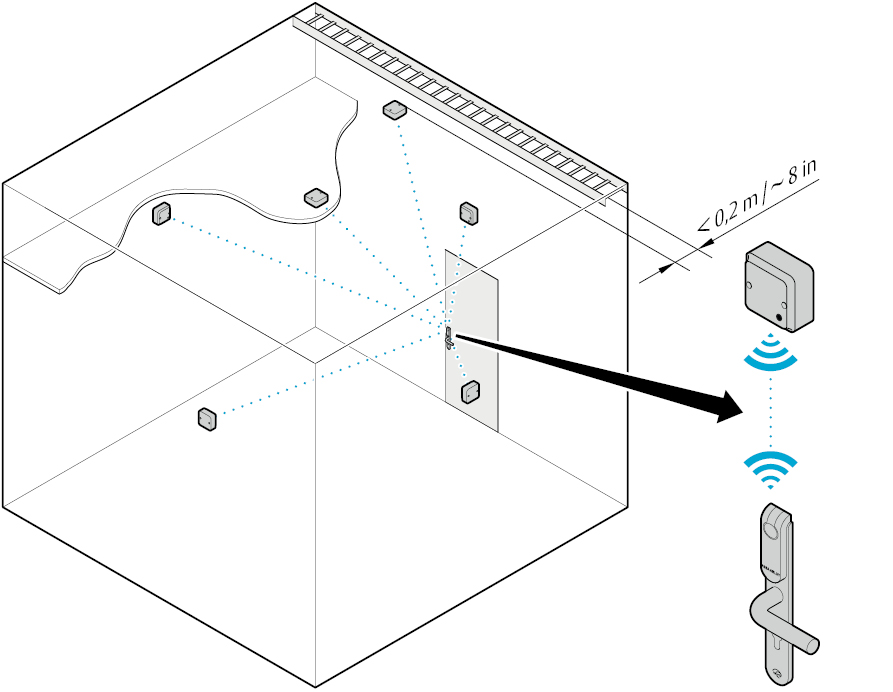

The following pages shows typical installations based on field experience that will give a good result for radio link quality. The colors indicate which hubs and Aperio door locks that belong together.
 |
AH20/30/40 Communication hub with internal antenna, installed on a wall. |
 |
AH20/30/40 Communication hub with internal antenna, installed in the ceiling. |
 |
AH20/30/40 Communication hub with external antenna, installed in the ceiling. |
 |
Door with Aperio lock |
Placement options for AH20/30/40 communication hub
