DIP 1 - Selecting LED input signals and access decision




If the EAC system can send a signal that actively asserts an access denied decision (Red LED), DIP 1 should be set to ON. This will give:

  • Shorter response time at a denied access.
  • Possibility to use override credentials in the lock.

The flowcharts below explain how the LED input signals are used to derive an access decision. The OFF and ON variants are depicted. '

../../images/mechinst/image38.jpeg

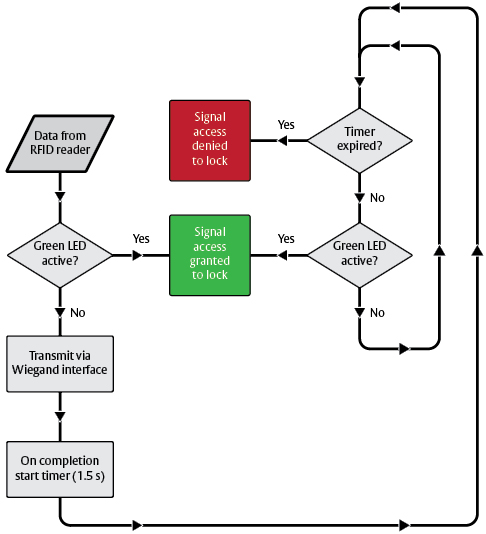

Dip Switch 1 – OFF: Access decision logic with single LED signal

../../images/mechinst/image39.jpeg

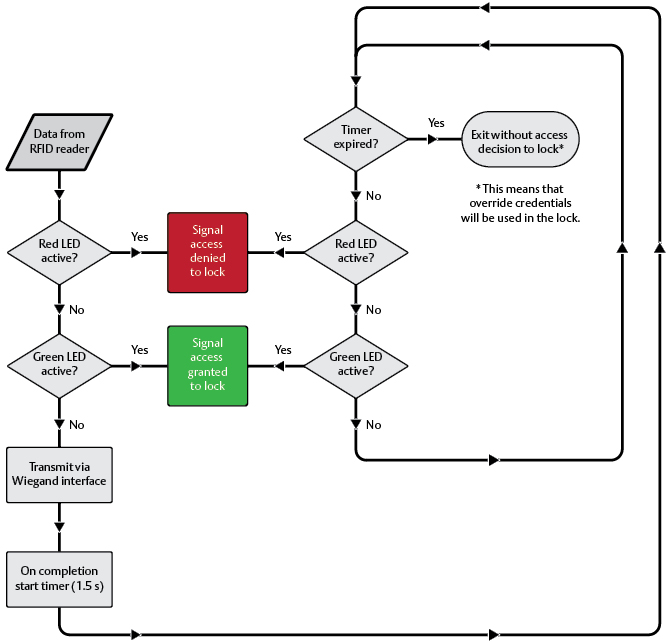

Dip Switch 1 – ON: Access decision logic with two LED signals

Note:

If the EAC system is using output signal Red LED for other purposes than to control the lock, then this signal should not be connected to the communication hub. Set DIP switch 1 in position OFF in this case

If the EAC system is using output signal Green LED for other purposes than to control the lock, then this signal should not be connected to the communication hub. Use a lock relay output or another similar lock control output from the EAC system instead.

Use of override credential is not possible combined if DIP switch 1 in position OFF. The reason is that the Hub produces an “access denied” decision based on time out in this case.
