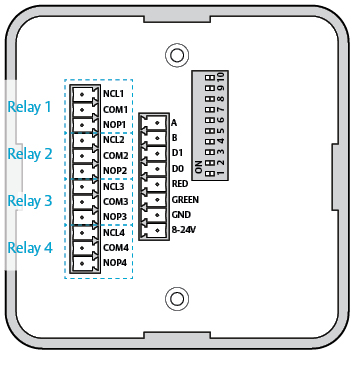

The four form C relays on the AH20 version can be used by the EAC to supervise door position status, handle position, battery alarm output and tamper alarm output.
Relays |
Description |
|---|---|
Relay 1/K500 |
DPS (Door Position Sensor) |
Relay 2/K501 |
RX (Request to exit) |
Relay 3/K502 |
Battery Alarm Output |
Relay 4/K503 |
Tamper Alarm Output/Lock Jammed |
Relay Contacts |
Description |
|---|---|
NCL |
Normal Closed |
COM |
Common |
NOP |
Normal Open |
Relay max voltage: 30 VDC
Relay max current: 1 A resistive load
