One-to-several installation

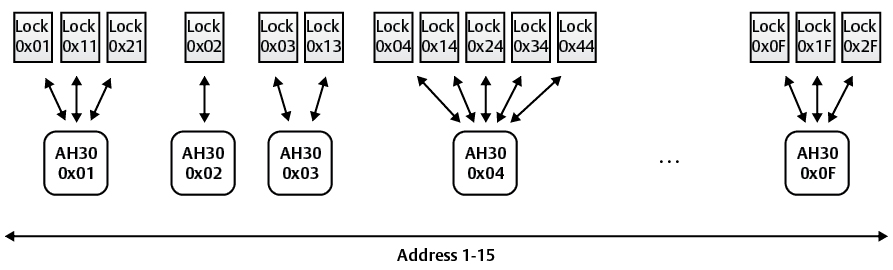

This is the default installation as described in section "DIP 1-5 – Selecting the EAC address/Automatic paring" on page 36, with up to 15 AH30 communication hubs paired with one or several locks. Only the addresses 1-15 are used.

The addressing table above does not need to be consulted in this type of installation, since all the lock addresses used are unique. Addressing is simply made by selecting a unique address for each communication hub.
