Single device installation

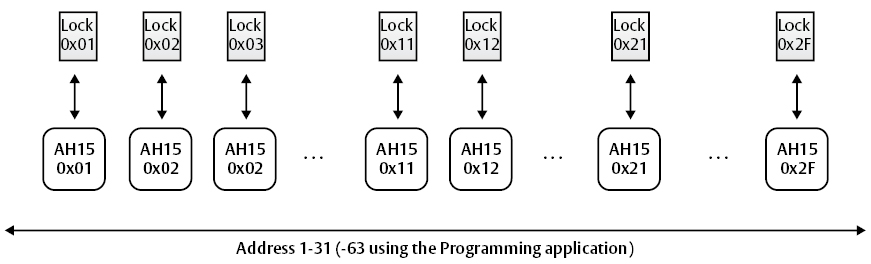

A single device installation uses only AH15 communication hubs with the address range from 1 to 63, according to this figure:

In this installation example, no address conflicts will occur since the lock address is equal to the communication hub address (and provided that the DIP Switches are set correctly with a unique address for each communication hub).
