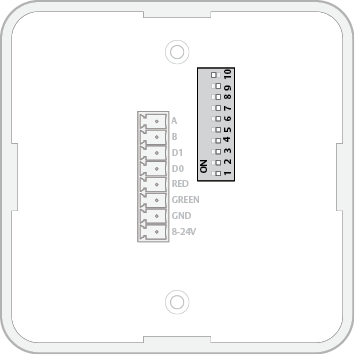

DIP |
Abbr. |
Description |
|---|---|---|
10 |
INT/EXT |
Internal/external antenna |
9 |
Not used |
|
8 |
TERM |
Activates termination of EAC bus |
7 |
UP |
Activation of pull up resistor |
6 |
DOWN |
Activation of pull down resistor |
5 |
A4 |
Manual EAC Address |
4 |
A3 |
Manual EAC Address |
3 |
A2 |
Manual EAC Address |
2 |
A1 |
Manual EAC Address |
1 |
A0 |
Manual EAC Address/Automatic pairing (DIP 1-5 = OFF) |
